HIOKI ST5520 Insulation Tester SKU-EMH429
$695.00

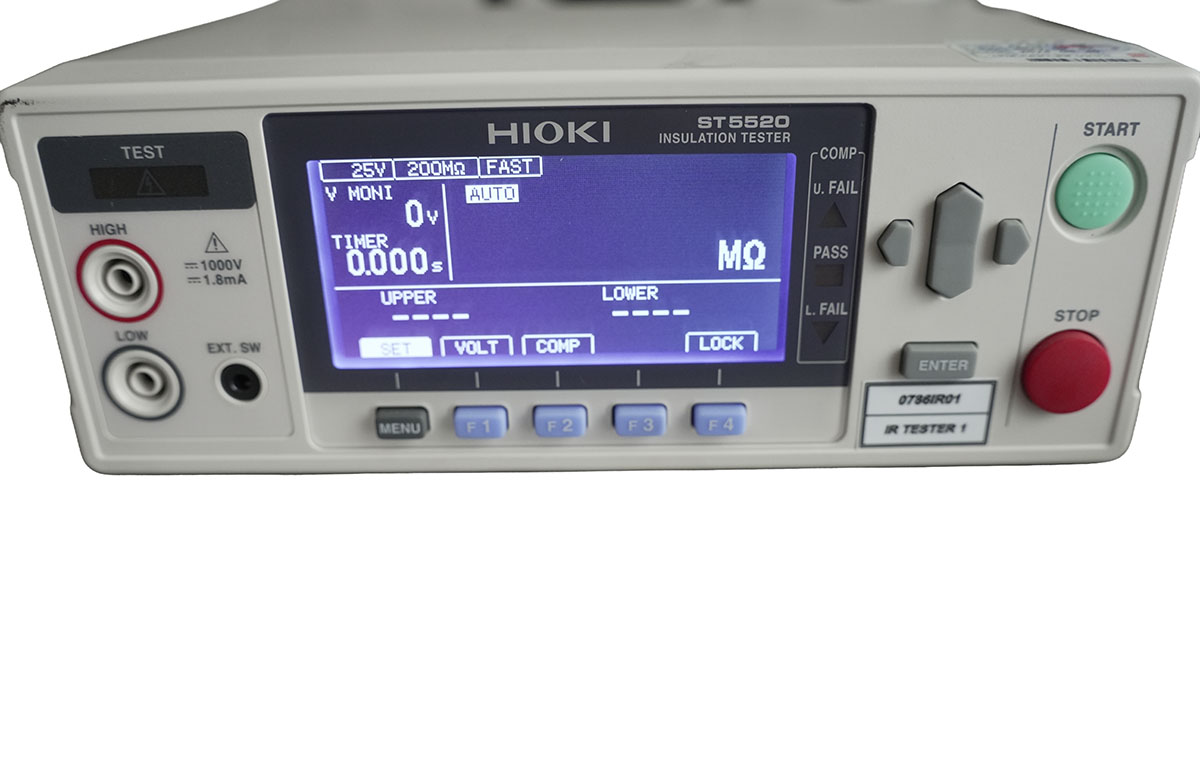

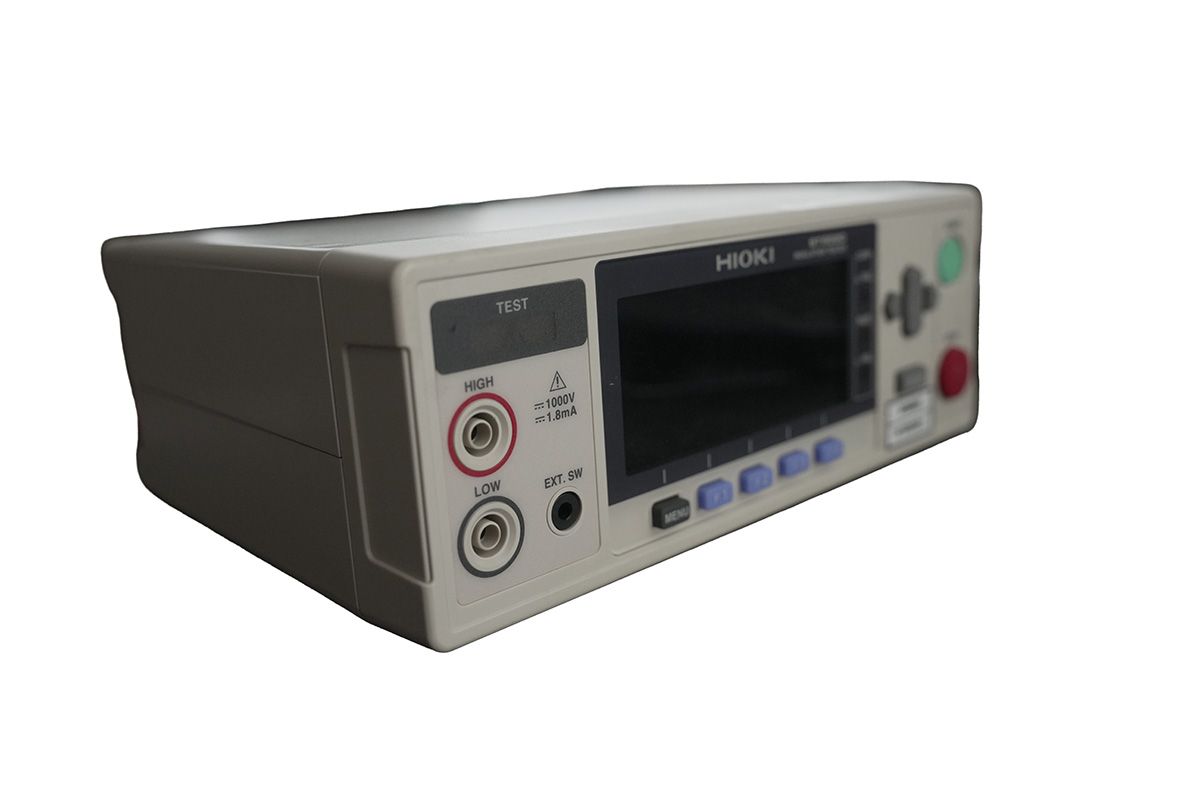

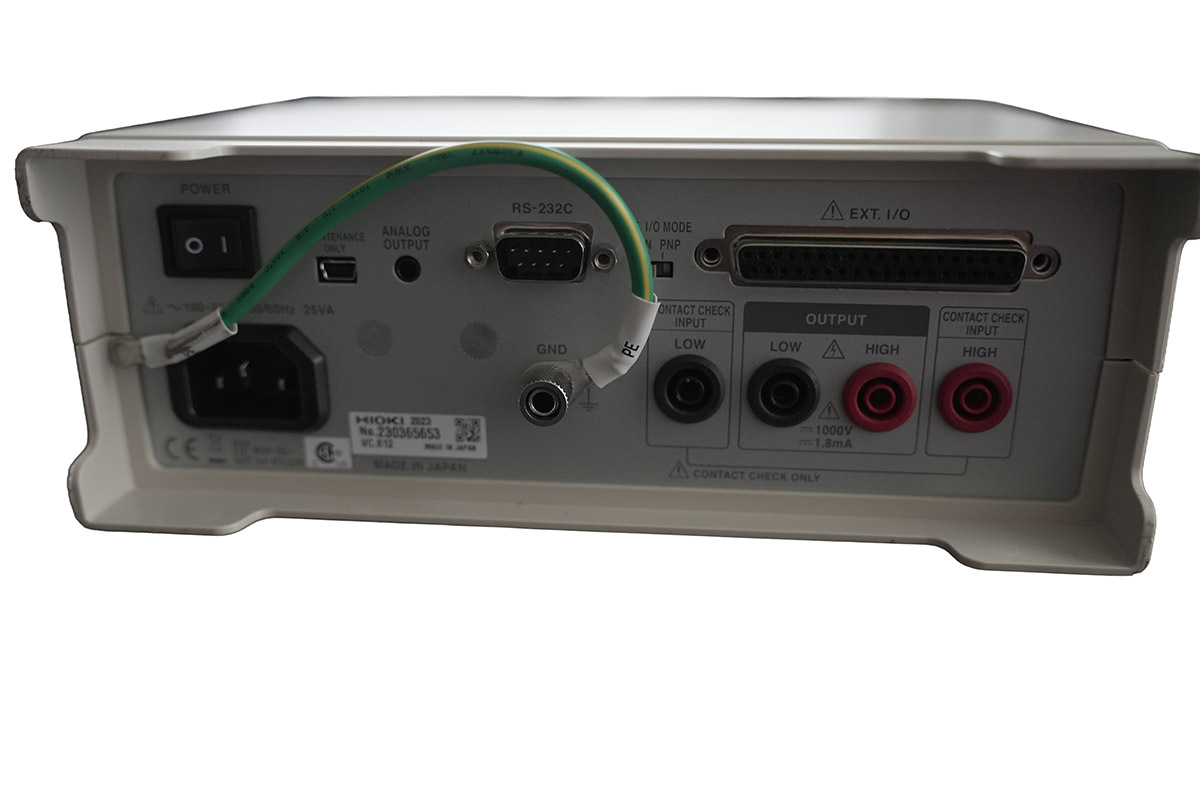

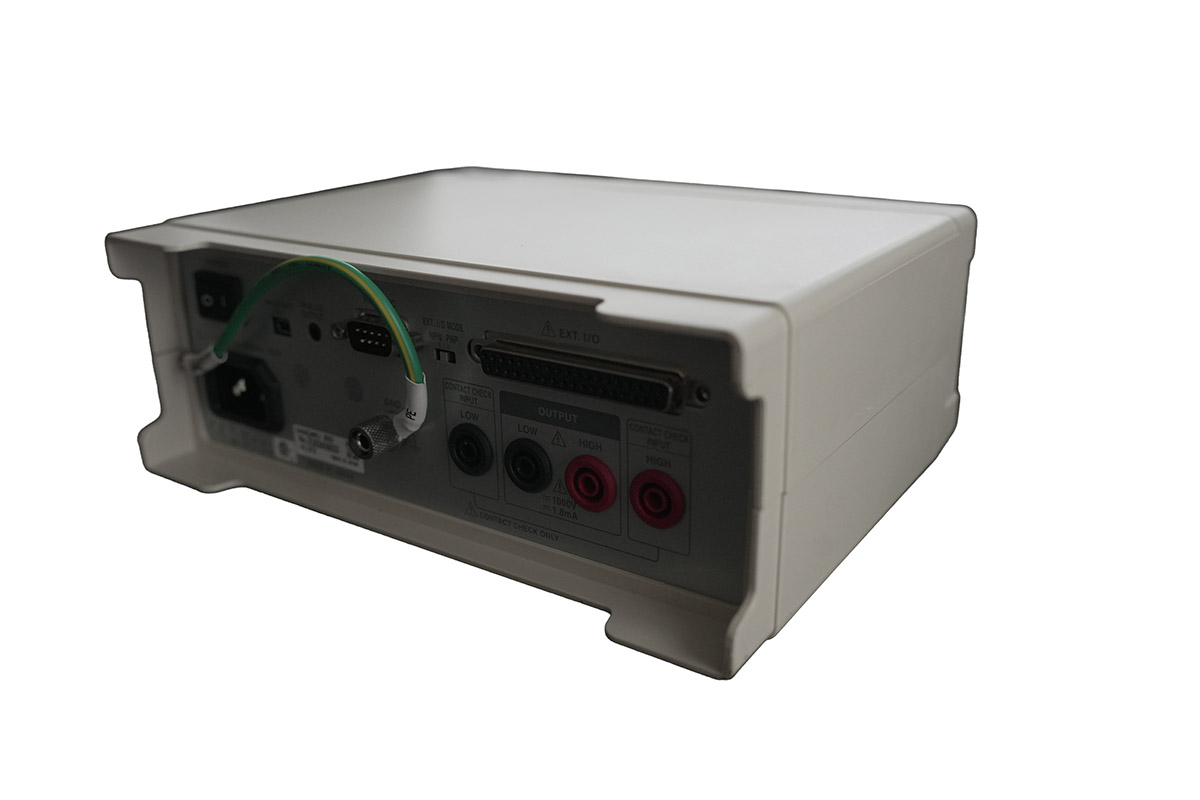

HIOKI ST5520 Insulation Tester
The HIOKI ST5520 Insulation Tester is a professional high-speed insulation resistance tester designed for production, quality-control, laboratory, and automated testing applications. It provides programmable DC test voltages from 25V to 1000V in 1V increments and insulation resistance measurement up to 9990 MΩ.
Designed for fast production environments, the ST5520 can provide PASS/FAIL assessment in as little as 50 ms. Built-in contact-check and short-circuit-check functions help identify poor test connections and potential defects before or during insulation testing.
Key Features
- Test Voltage: 25V to 1000V DC
- Voltage Resolution: 1V
- Insulation Resistance: Up to 9990 MΩ
- Fast PASS/FAIL Assessment: As fast as 50 ms
- Measurement Speed: FAST 30 ms / SLOW 500 ms
- Contact Check Function helps detect improper connection to the device under test
- Short-Circuit Check Function
- Comparator Function: PASS / Upper Fail / Lower Fail
- Quick residual-voltage discharge
- Internal Memory: Stores up to 10 test configurations
- RS-232C Interface for computer communication
- External I/O for integration with automated production and test systems
- Selectable automatic or manual resistance ranging
- Designed for high-speed production-line testing
Applications
The HIOKI ST5520 is suitable for insulation testing of:
- Batteries and battery components
- Electronic components
- Relays and connectors
- Electrical and electronic assemblies
- Production-line components
- Quality-control and manufacturing applications
- Automated electrical safety testing systems
Specifications
Measurement Method: DC voltage applied insulation resistance measurement
Test Voltage: 25V–1000V DC, adjustable in 1V increments
Maximum Display: 9990 MΩ
Power Requirements: 100–240V AC, 50/60 Hz
Maximum Power Consumption: 25 VA
Dimensions: Approx. 8.46″ W × 3.15″ H × 6.54″ D
Weight: Approx. 2.4 lb (1.1 kg)
Important
The ST5520 requires appropriate optional test leads/probes for operation. HIOKI lists accessories such as the L2200 Test Lead, L9257 Connection Cord, and 9299 Switched Probe.
